Introduction
The online approval tool (ProofScope) has the ability to recognise and read barcodes (see table below for all readable formats).
Detect and Read Barcodes
In order to use the Barcode Scanner, please click on the icon below from the toolbar:
This will allow you to draw a box over the area of the barcode.

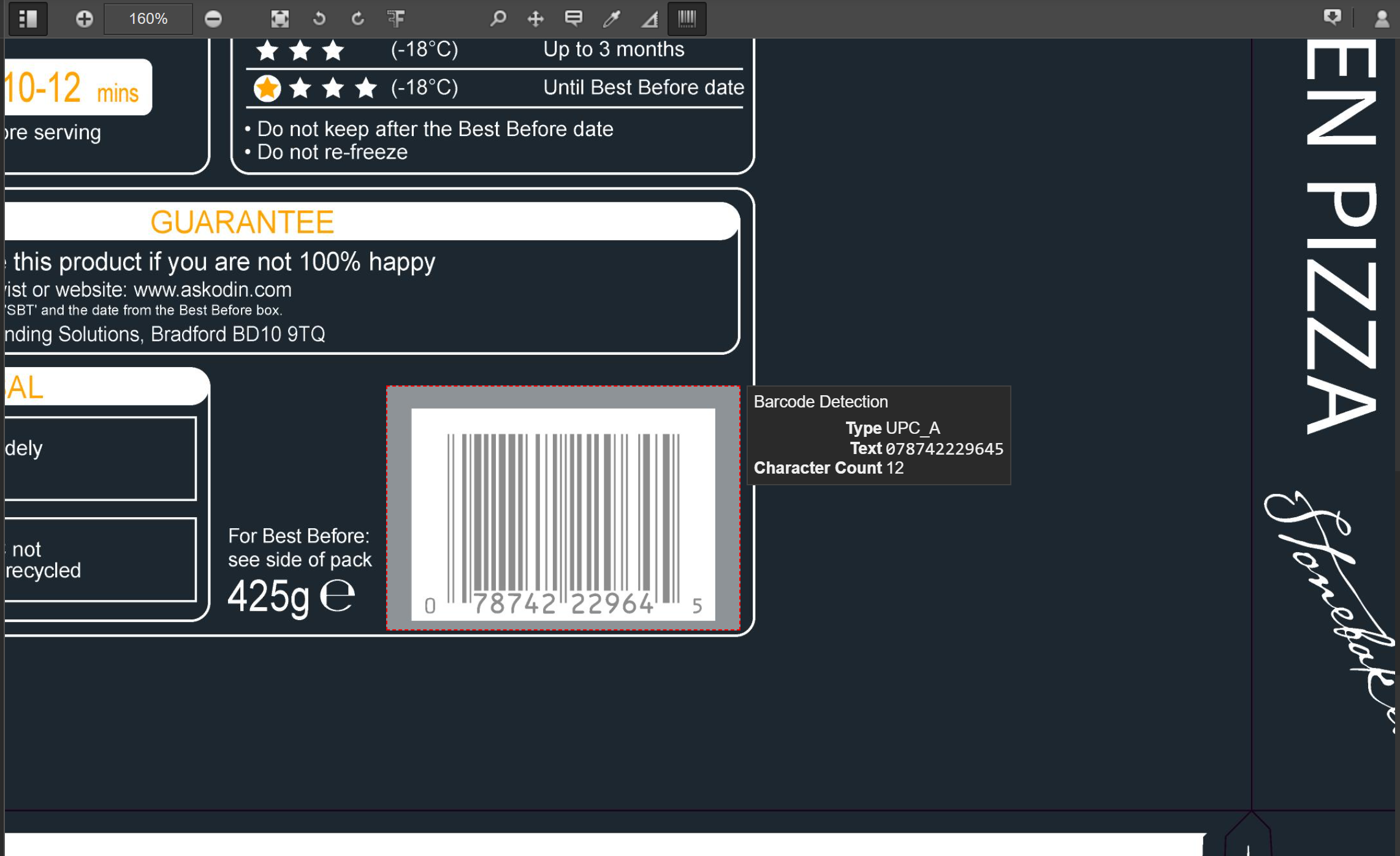

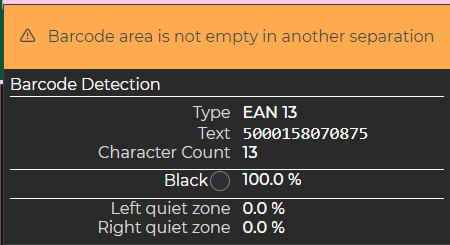

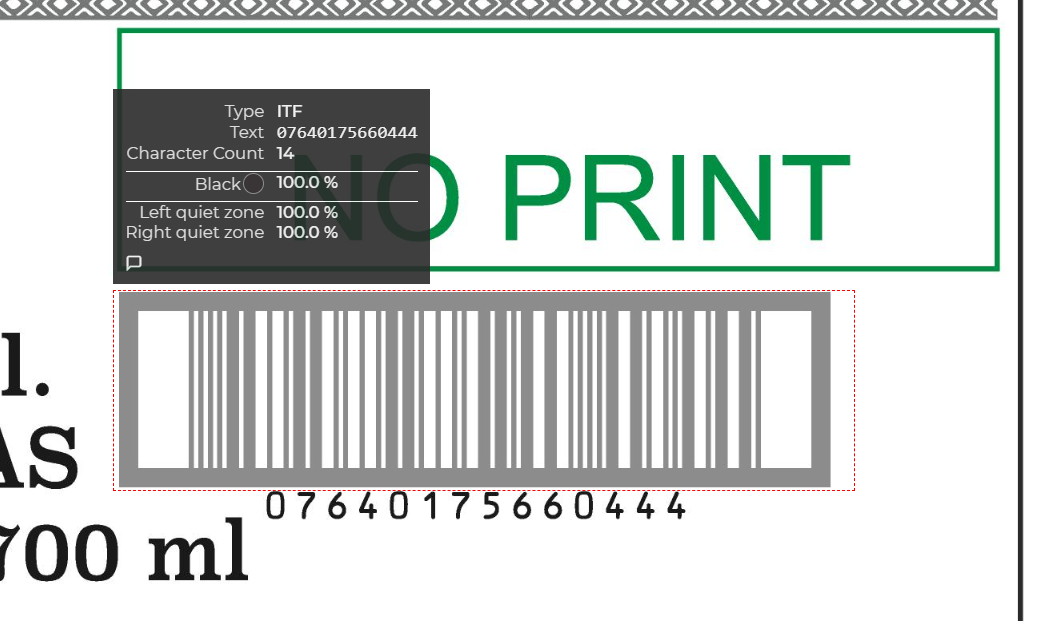

If ProofScope detects a barcode in the area selected, it will display:
- Type
- Text/Number
- Character count
To move this into an annotation, you can copy and paste the text, and place into a comment in the notes tool.
Supported Barcodes
|
1D product |
1D industrial |
2D |
|
UPC-A |
Code 39 |
QR Code |
|
UPC-E |
Code 128 |
Data Matrix |
|
EAN-8 |
Code 93 |
Aztec |
|
EAN-13 |
Codabar |
PDF 417 |
|
ITF |
MaxiCode |
|
|
RSS-14 |
||
|
RSS-Expanded |
See Also:
